RSL's Tree Shear Range

Flows and pressures Click here, Shear Protection Valves Click here, Videos Click here Onsite training Click Here

NEW we now have other forms of rotation, please click here

2.5t to 14t shears, for bigger shears keep scrolling down!

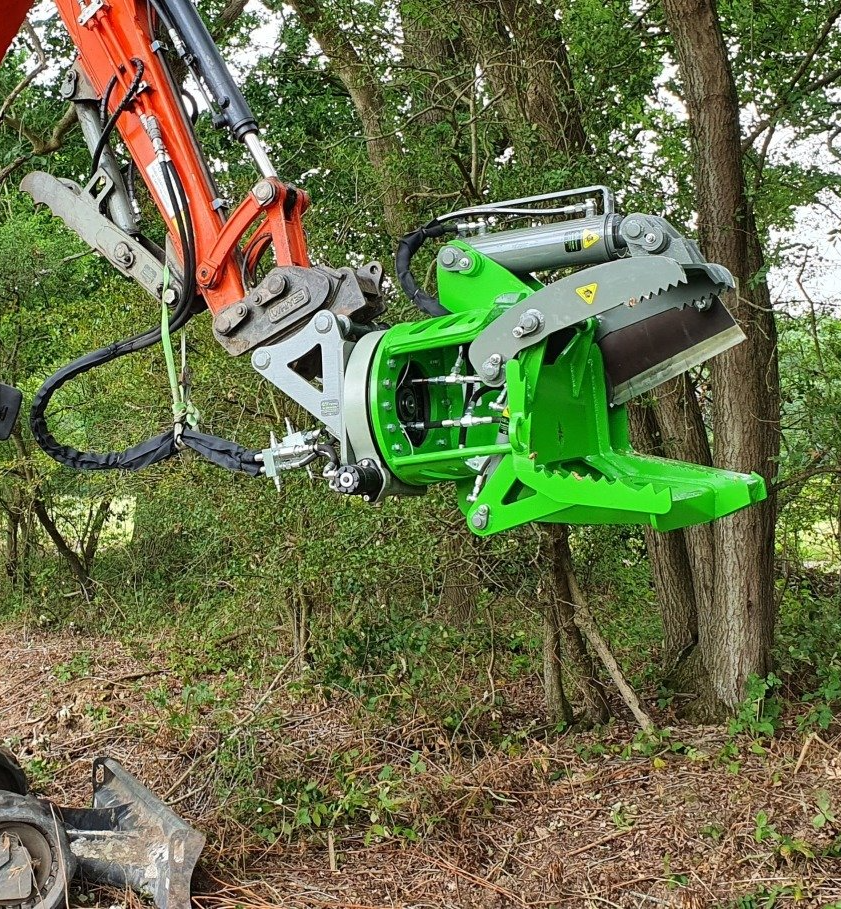

12" Lite Shear
Button
Can be attached to smaller machines but you may need to add a counter weight for stability or purchase with direct mount brackets and no rotation. Click HERE for a video
Button

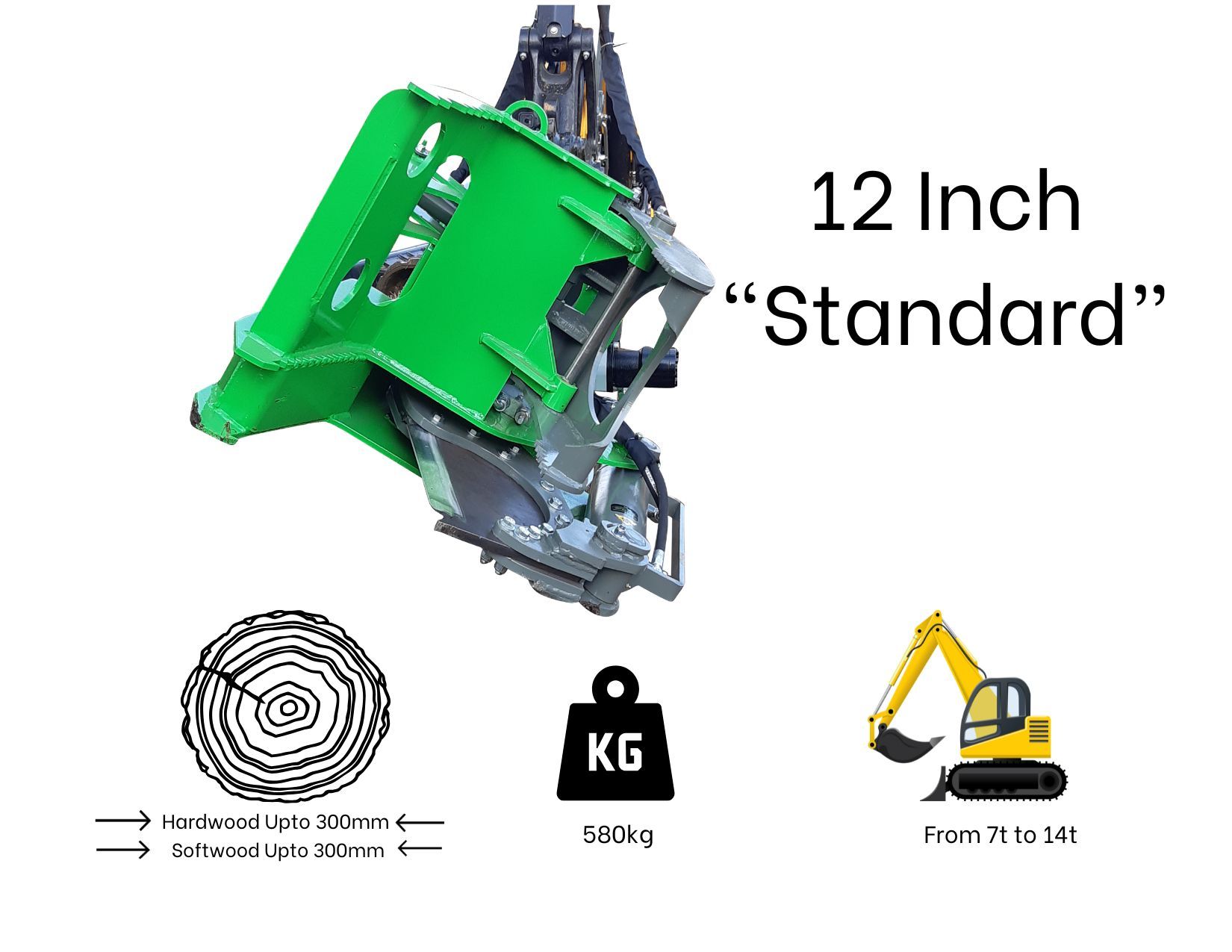

12" Inch "Standard" Shear
Buy - eBay Opens in New Window
Same as the "Lite" shear above but the frame is made completely from 20mm high tensile steel to cope with stress from larger machines. Click HERE for a video
Button
Button

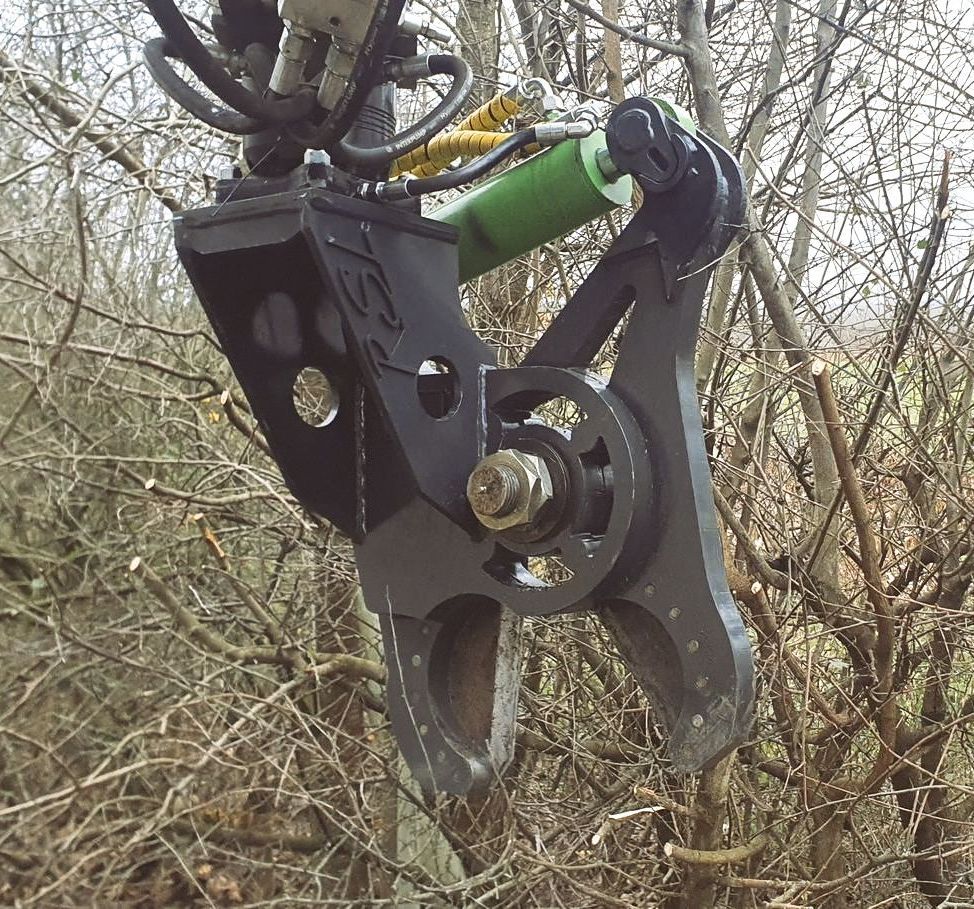

RSL Lopper

Designed for the smaller machine from 2.5t to 6t. The lopper can perform neat flush cuts form just a few milimeters to 180mm thick in hard or softwood. The shear has the option of a side re-handling grab and is available with manual or hydraulic rotation. The shear can also be mounted to mini loaders.
Button

There is a shear to suit all suitable machines and purpose. Our NEW Lopper 180 shears are great for hedging and can be specified with rotation. Not much in the UK grows straight so having a rotator on a shear is not a luxury it is almost essential.

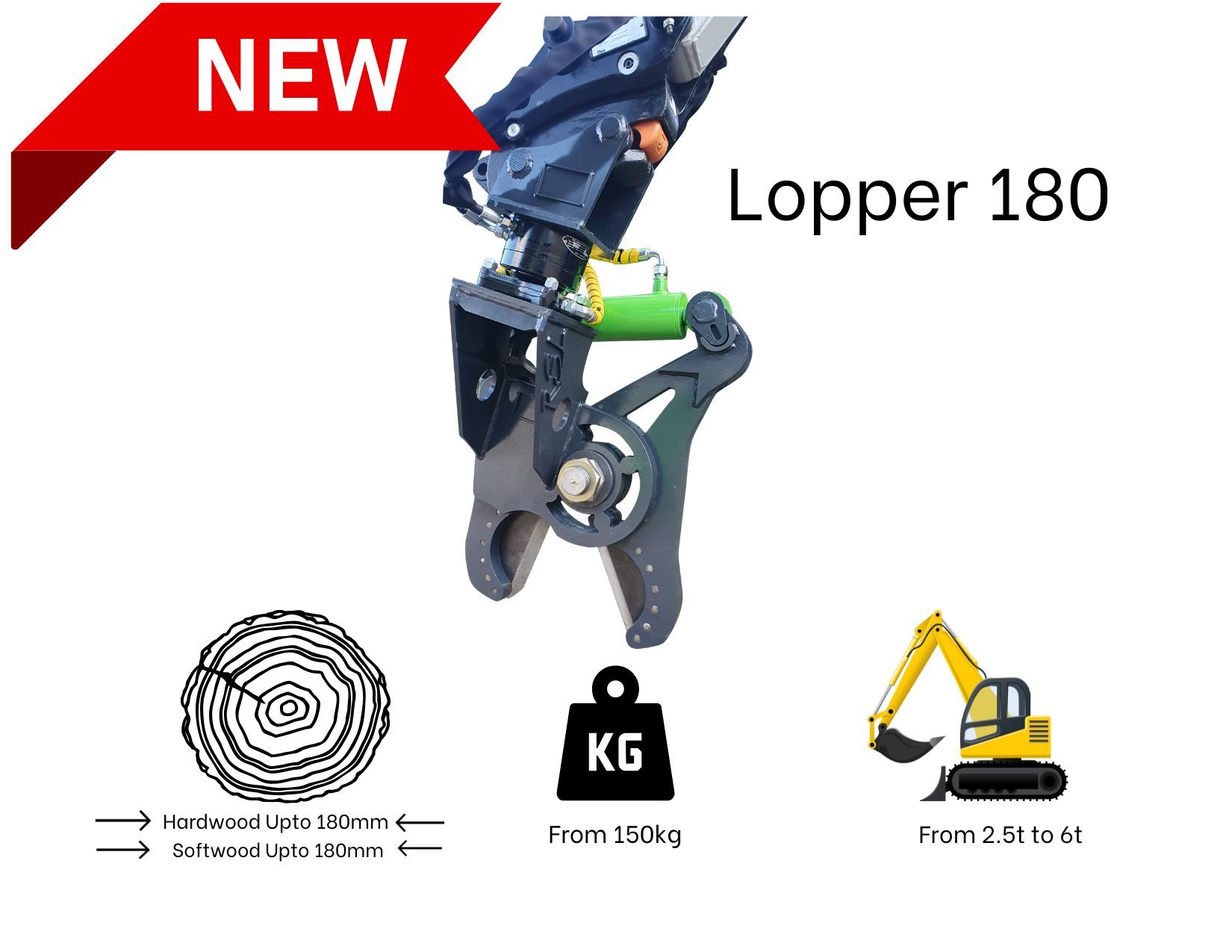

The Lopper 180 is nimble, compact and fast. The cut capacity is upto 180mm in hard and softwood. The Lopper 180 tree shear can be specified just as a shear with intergrated brackets (keeps weight down for small machines) , A bolt on headstock, or with either an AVS unbraked rotator or manual rotator. Suitable for excavators from 2.5t to 6t or mounting to a mini loader. The Lopper 180 is also available with a side grab for rehandling branches

Buy Now - Shopwired Opens in a New Window

The RSL "Lite" shear and "standard" shear are true beasts in their fields. The capacity is from 12 inch to 20 inch cut. The shears are designed so what you get in the jaw you cut regardless of wood hardness. These shears differ from the New Lopper 180 as these shears grab the wood then cut. This process which is delivered on one auxiliary circuit makes the Lite and Standard shear far safer to use compared to the fixed blade type of shears on the market.

14t to 25t Shears, keep scrolling for videos!

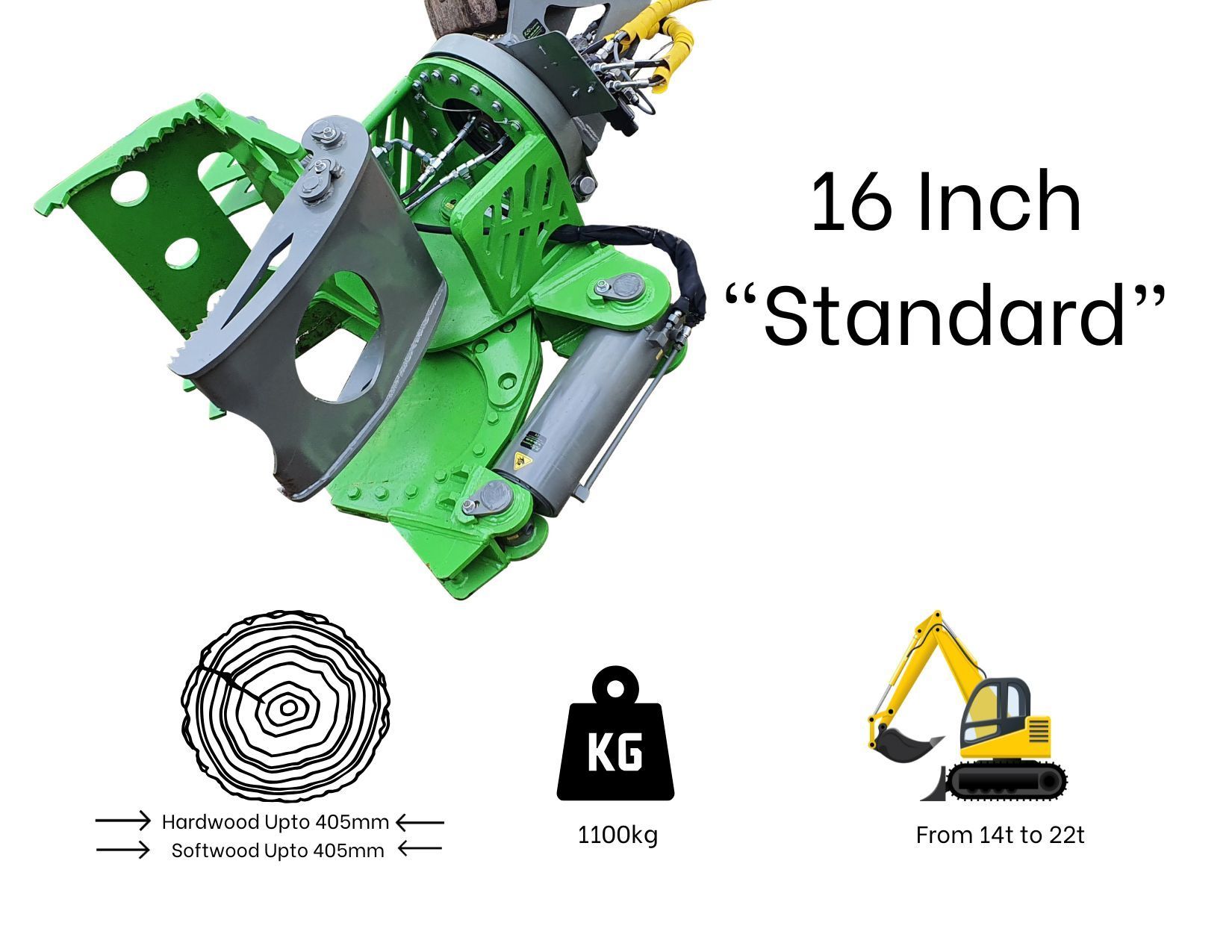

16" Shear
Button

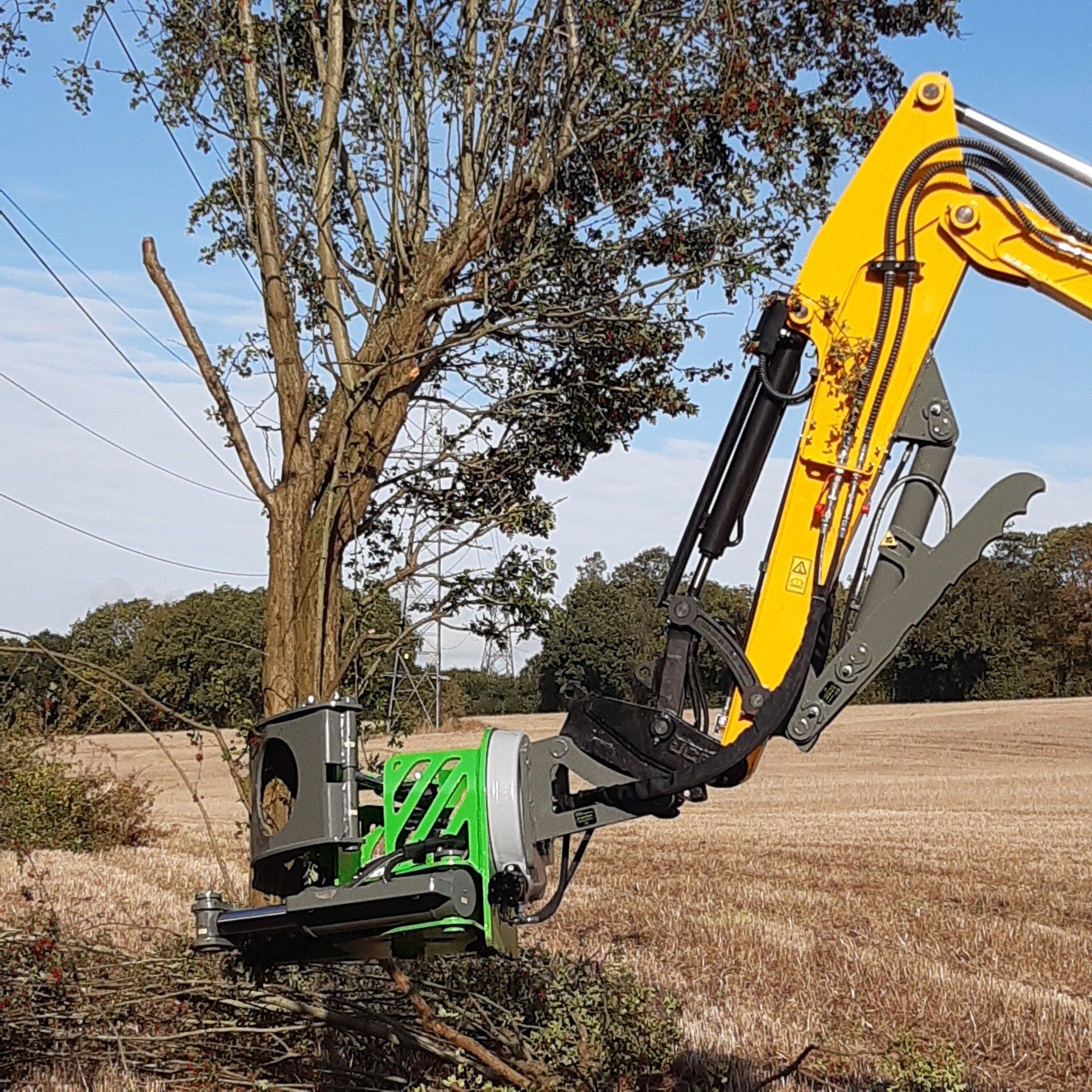

Mark II 16 inch tree shear, 55t of force at the tip of the blade, full 360 rotation, large surface area grab for safety Click HERE for a video
Button

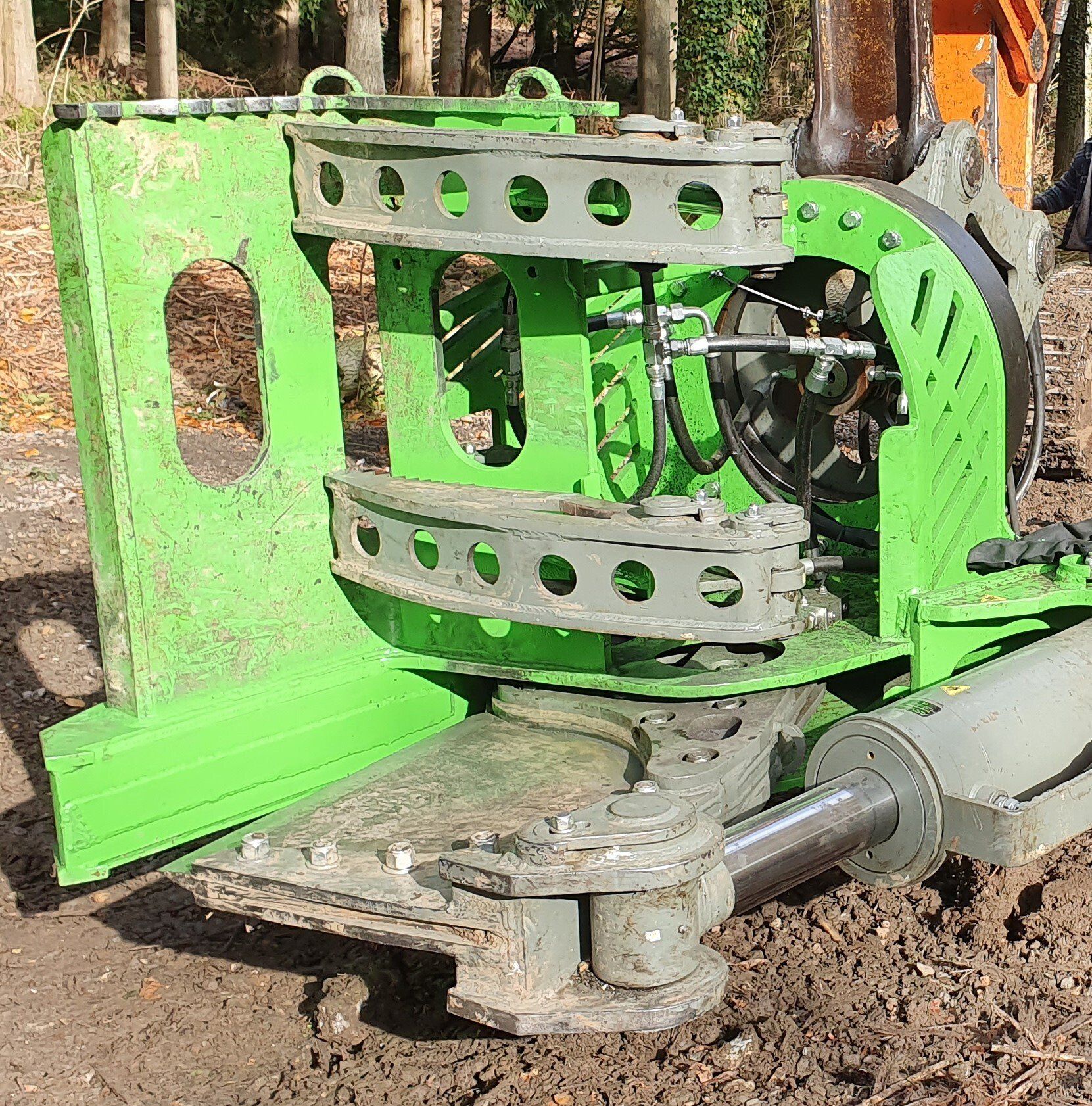

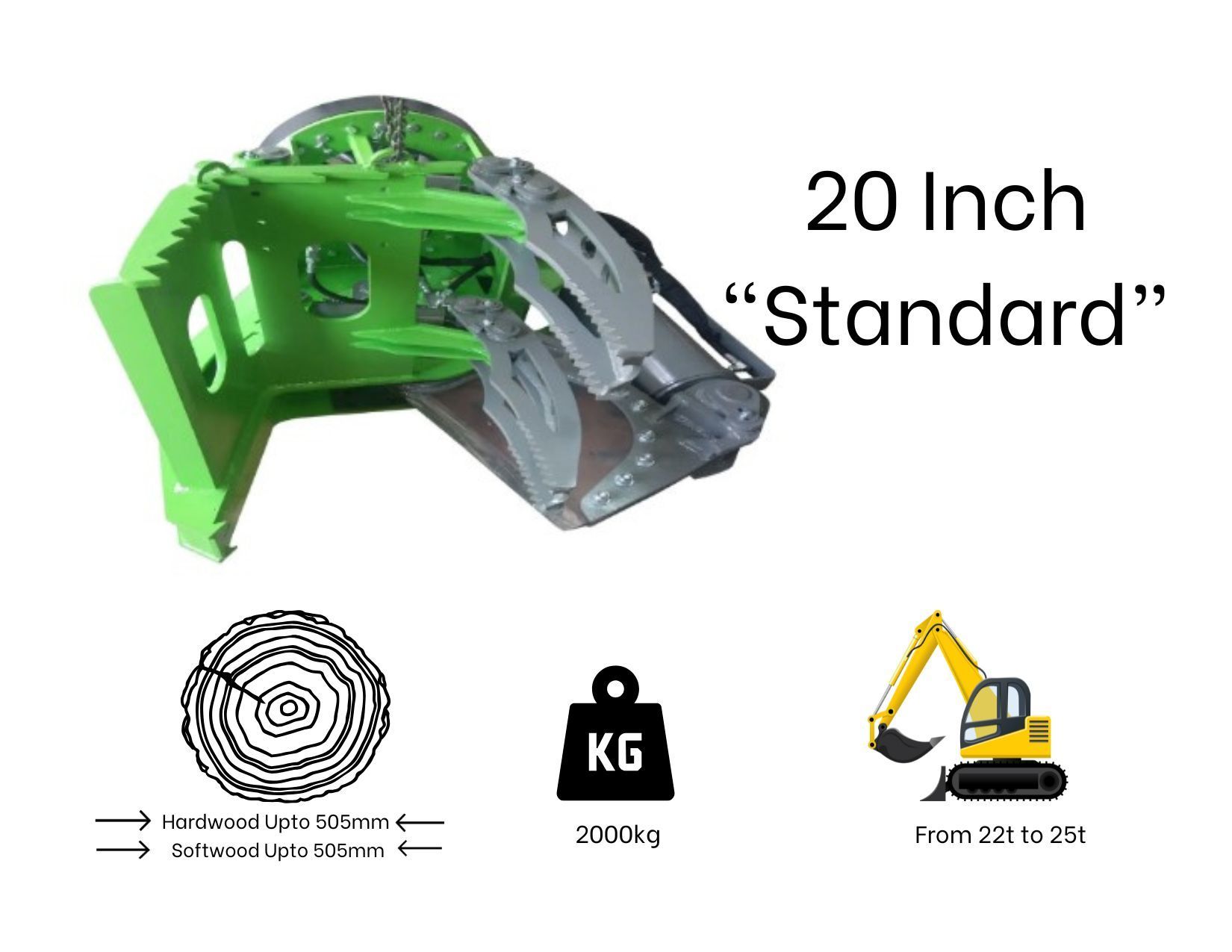

20" Inch Shear
Buy - eBay Opens in New Window
Button

Rotation

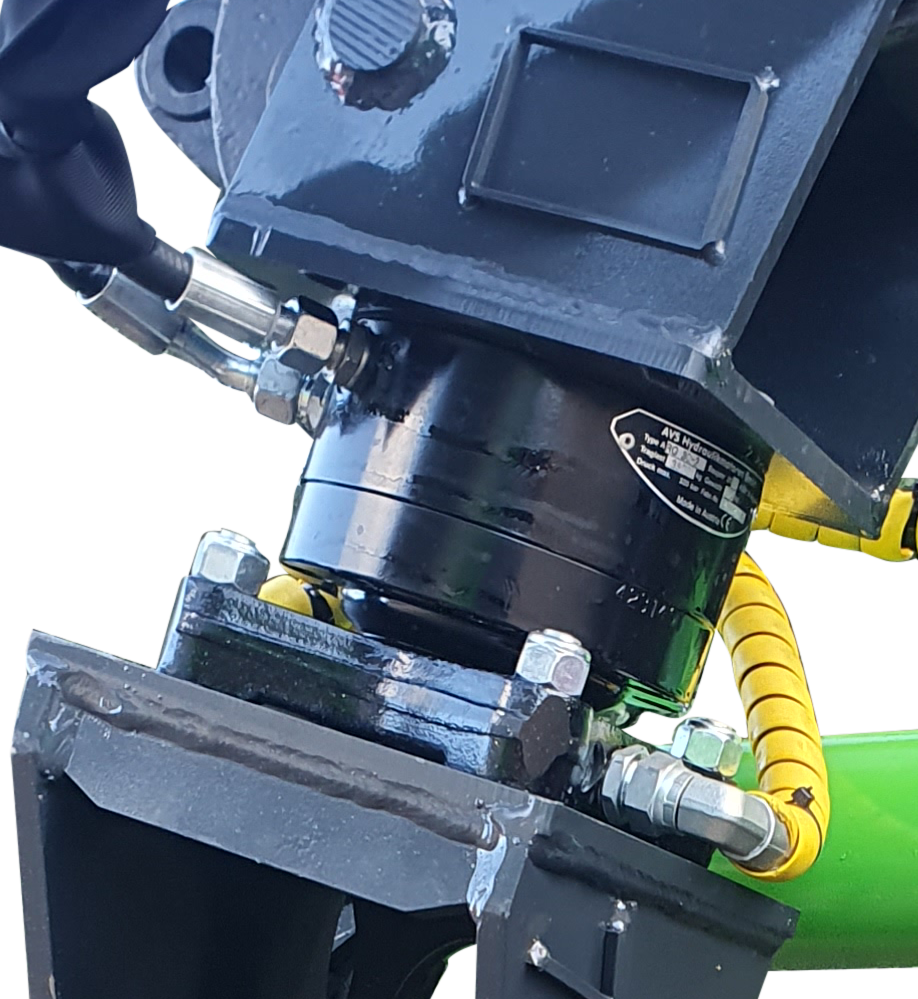

AVS Rotators
Button
Shear Protection Valves
Button
Liebherr Slew Drive
Button

We offer 3 types of rotation for the shears:

The Ram Pivots cost is limited rotation. 170 degrees. That is 85 degrees either side of centre. For the majority of applications this is more than enough. The Ram Pivot is also priced exactly the same as a worm drive unit which makes it one tough outfit.
Liebherr worm drive, 360 degree continuous rotation. Maximum 2 RPM
Liebherr Slew drive (like your diggers turntable). Maximum 4 RPM and almost zero maintenance

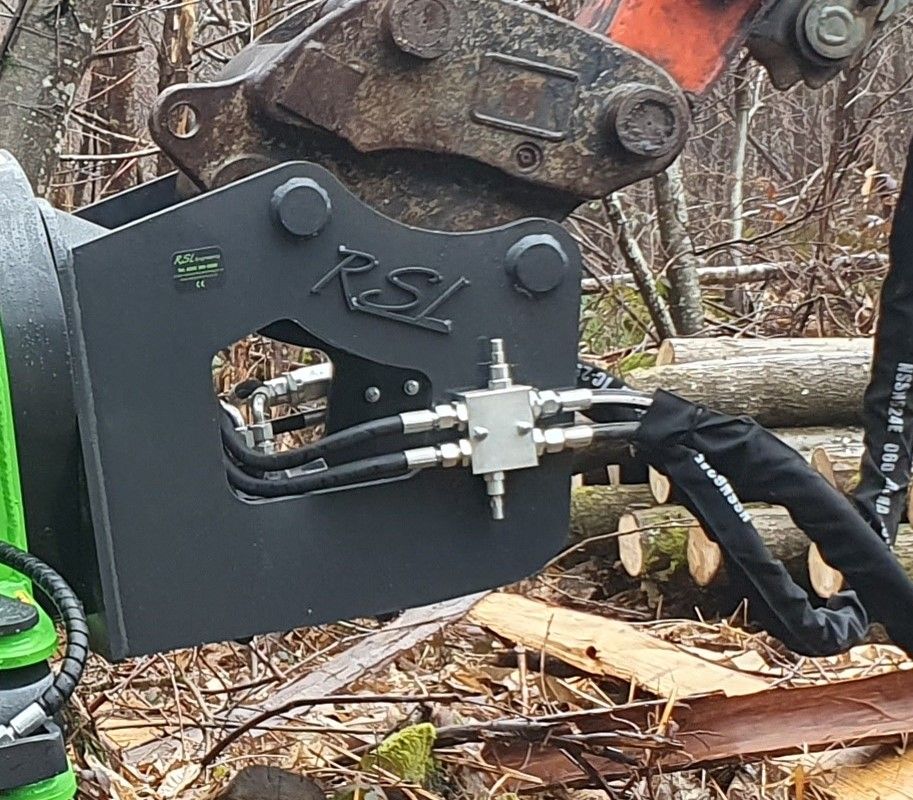

Protection Valves

RSL's Tree Shears are an very effective and efficient method for reducing and felling trees and hedges. Our shears are designed to run at 200 bar max pressure. This is important as your excavators auxiliary hydraulics are designed by the manufacturer to achieve approximately 200 bar. (we find results on excavators from 150-210 bar is normal).
We add the protection valves to make the shears plug and play. Over the years we sent shears out with instructions for the owners to set their flows and pressures. Some did, most didn't! The reason for this is in most cases the machines were not able to be set up. Most modern machines flows can be set from the cab, the pressure cannot be changed though. We added these valves and set them in our workshops on our testbed to the maximum values. Your machine can put excess pressure to the shear but the valves will not let it through. Hopefully with these valves and the onsite training we provide when you buy a Standard or Lite shear from RSL. You will be able to relax and carry out one of the most fun jobs you can do with a digger!

Flows and pressures

Requirements for the RSL Shears are as follows:-

The Lopper 180

1x double acting service upto 70lpm and MAX 200 bar for the shear

1x double acting service upto 20lpm and MAX 320 bar for an unbraked AVS rotator (if required)

The Lite shear and standard shear from 12 inch cut to 16 inch cut

1x double acting service upto 100lpm and MAX 200 bar for the shear and grab circuit.

1x double acting service upto 25lpm and MAX 70 bar for the worm drive rotator (if required but we do recommend this)

The standard shear 20 inch cut

1x double acting service upto 120lpm and MAX 200 bar for the shear and grab circuit.

1x double acting service upto 45lpm and MAX 70 bar for the worm drive rotator

If you do not have the correct hydraulic services on your machine we can do valve packages that can be added to the shear to correct the requirements. Please contact us for details.

Buy Now - Shopwired Opens in a New Window

Onsite Training

At RSL, we don't just sell you a shear. Once the shear is ready it will be dispatched to you. When you are ready Our MD will come along and check your machines pressures and set up flows for the rotation and grab. He will then go through maintenance and training. All this usually takes just a couple of hours. Richard designed the shears and has been using them for many years, so can advise on any query. Many people who have been through the training have mentioned how beneficial this has been. From RSL's point we have also cut out 95% operator errors. The training and shear protection valves have made an enormous difference to shear reliability.
